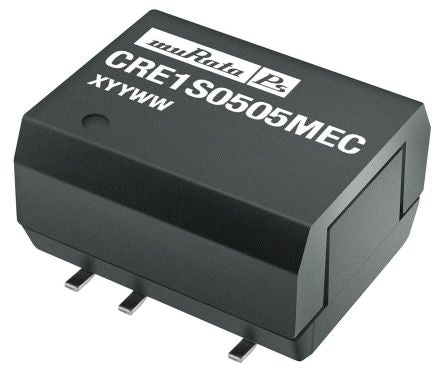

Murata Power Solutions CRE1 1W Isolated DC-DC Converter Surface Mount, Voltage in 4.5 → 5.5 V dc, Voltage out 5V [CRE1S0505MEC]; 135-5962
0₫
Mã kho: 1355962
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Output Current | 200mA |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 3kV dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.82 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.08 |
| Maximum Temperature | +85°C |
| Standards Met | CULus Recognised, UL 60950 |
| Series | CRE1 |
| Length | 12.7mm |
| Width | 10.7mm |
| Depth | 6.85mm |
