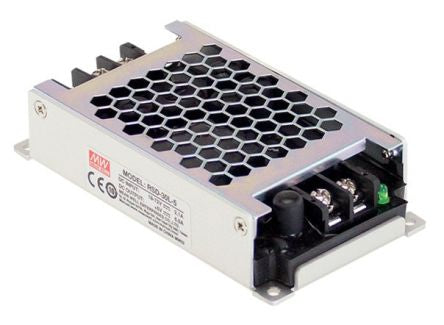

Mean Well RSD-30 30W Isolated DC-DC Converter Chassis Mount, Voltage in 40 → 160 V dc, Voltage out 24V dc [RSD-30H-24]; 140-8109
by Mean Well
0₫
Mã kho: 1408109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 40 → 160 V dc |
| Input Voltage Nominal | 40 → 160 V dc |
| Isolation Voltage | 4kV dc |
| Power Rating | 30W |
| Output Current | 1.25A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Railway Approved | Yes |
| Package | Enclosed |
| Load Regulation | ±0.2% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Width | 60mm |
| Depth | 25mm |
| Length | 113mm |
| Series | RSD-30 |
