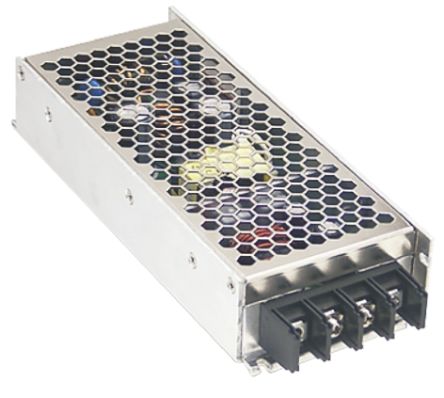

Mean Well RSD 150 150W Isolated DC-DC Converter Chassis Mount, Voltage in 16.8 → 31.2 V dc, Voltage out 12V dc [RSD-150B-12]; 753-7837
by Mean Well
0₫
Mã kho: 7537837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 16.8 → 31.2 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 4kV dc |
| Power Rating | 150W |
| Output Current | 12.5A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Series | RSD 150 |
| Length | 189mm |
| Depth | 36mm |
