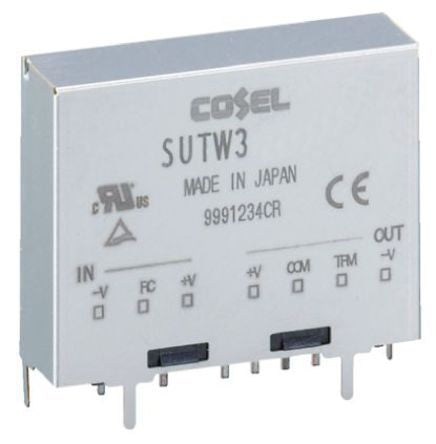

Cosel 3.12W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out ±12V dc [SUTW30512]; 690-4507
by Cosel
0₫
Mã kho: 6904507
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 4.5 → 9 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 500V ac |
| Power Rating | 3.12W |
| Output Current | 130mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 9.15mm |
| Length | 23.4mm |
