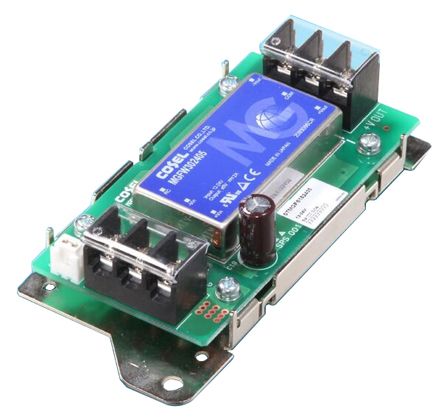

Cosel STMGFW 30W Isolated DC-DC Converter PCB Mount, Voltage in 9 → 36 V dc, Voltage out 30 V dc, ±15 V dc [STMGFW302415]; 132-7517
by Cosel
0₫
Mã kho: 1327517
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15 V dc, ±30V dc |
| Output Voltage Adjustment Range | 14.6 → 15.51V |
| Power Rating | 30W |
| Input Voltage Range | 9 → 36 V dc |
| Output Current | 1A |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5 kV dc, 500 V dc |
| Mounting Type | PCB Mount |
| Number of Outputs | 2 |
| Efficiency | 0.87 |
| Minimum Temperature | -20°C |
| Load Regulation | 750mV |
| Maximum Temperature | +70°C |
| Standards Met | CE, CUL, EN 60950-1 Complies, UL 60950-1 |
| Series | STMGFW |
| Length | 117mm |
| Depth | 27mm |
| Width | 52mm |
