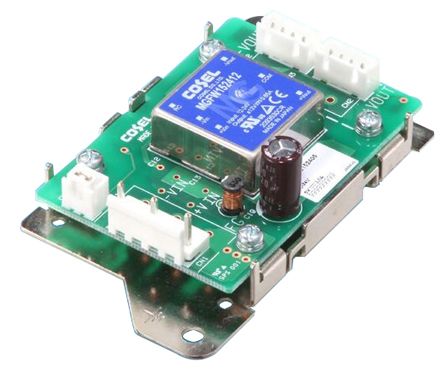

Cosel STMGFW 15W Isolated DC-DC Converter PCB Mount, Voltage in 9 → 36 V dc, Voltage out 24V dc [STMGFW152412]; 132-7510
by Cosel
0₫
Mã kho: 1327510
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±24V dc |
| Output Voltage Adjustment Range | 11.76 → 12.5V |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 500V dc |
| Power Rating | 15W |
| Output Current | 650mA |
| Mounting Type | PCB Mount |
| Number of Outputs | 2 |
| Efficiency | 0.88 |
| Load Regulation | 600mV |
| Minimum Temperature | -20°C |
| Maximum Temperature | +70°C |
| Depth | 27mm |
| Width | 52mm |
| Standards Met | CE, CUL, EN 60950-1 Complies, UL 60950-1 |
| Series | STMGFW |
| Length | 93mm |
