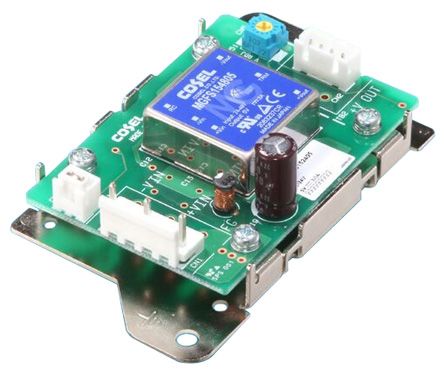

Cosel STMGFS 15W Isolated DC-DC Converter PCB Mount, Voltage in 18 → 76 V dc, Voltage out 15V dc [STMGFS154815]; 132-7493
by Cosel
0₫
Mã kho: 1327493
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Input Voltage Range | 18 → 76 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 500V dc |
| Power Rating | 15W |
| Output Current | 1A |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.89 |
| Minimum Temperature | -20°C |
| Load Regulation | 120mV |
| Maximum Temperature | +70°C |
| Standards Met | CE, CUL, EN 60950-1 Complies, UL 60950-1 |
| Width | 52mm |
| Series | STMGFS |
| Length | 93mm |
| Depth | 27mm |
