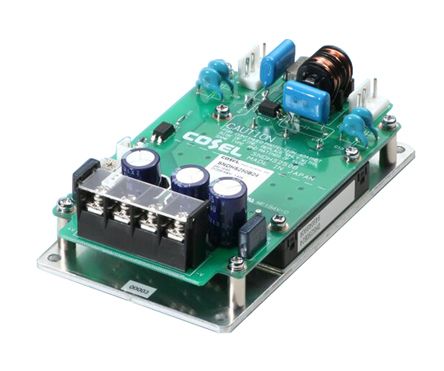

Cosel SNDHS 252W Isolated DC-DC Converter PCB Mount, Voltage in 200 → 400 V dc, Voltage out 24V dc [SNDHS250B24]; 132-7474
by Cosel
0₫
Mã kho: 1327474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Output Voltage Adjustment Range | 21.6 → 26.4V |
| Input Voltage Range | 200 → 400 V dc |
| Input Voltage Nominal | 280 V dc |
| Isolation Voltage | 3 kV ac, 500 V dc |
| Power Rating | 252W |
| Output Current | 10.5A |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.86 |
| Minimum Temperature | -20°C |
| Load Regulation | 100mV |
| Maximum Temperature | +95°C |
| Depth | 44.5mm |
| Width | 74.2mm |
| Series | SNDHS |
| Length | 127mm |
| Standards Met | CE, CUL, CULus Recognised, EN 60950-1, UL 60950-1 |
