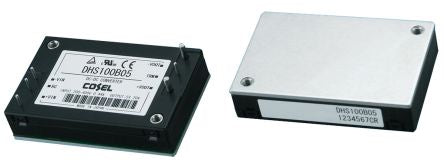

Cosel DHS 100.5W Isolated DC-DC Converter PCB Mount, Voltage in 60 → 160 V dc, Voltage out 15V dc [DHS100A15]; 132-5436
by Cosel
0₫
Mã kho: 1325436
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Input Voltage Range | 60 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3 kV ac, 500 V dc |
| Power Rating | 100.5W |
| Output Current | 6.7A |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.88 |
| Load Regulation | 30mV |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Series | DHS |
| Standards Met | CE, CUL (CSA 60950-1), CULus Recognised, EN 60950-1, UL 60950-1 |
| Depth | 12.7mm |
| Width | 37.3mm |
| Length | 58.4mm |
