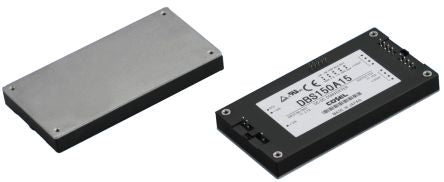

Cosel DBS 100W Isolated DC-DC Converter PCB Mount, Voltage in 45 → 160 V dc, Voltage out 5V dc [DBS100A05]; 132-5412
by Cosel
0₫
Mã kho: 1325412
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Output Voltage Adjustment Range | 4.9 → 5.2V |
| Input Voltage Range | 45 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3 kV ac, 500 V dc |
| Power Rating | 100W |
| Output Current | 20A |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.82 |
| Minimum Temperature | -20°C |
| Load Regulation | 40mV |
| Maximum Temperature | +85°C |
| Width | 61mm |
| Depth | 12.7mm |
| Length | 116.8mm |
| Series | DBS |
| Standards Met | CE, CUL, CULus Recognised, EN 60950-1, UL 60950-1 |
