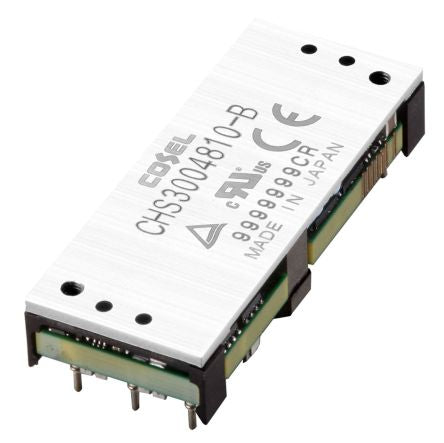

Cosel CHS 300W Isolated DC-DC Converter PCB Mount, Voltage in 36 → 76 V dc, Voltage out 12V dc [CHS3004812-B]; 132-5405
by Cosel
0₫
Mã kho: 1325405
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 12V dc |
Output Voltage Adjustment Range | ±10% |
Input Voltage Range | 36 → 76 V dc |
Input Voltage Nominal | 48 V dc |
Isolation Voltage | 1 kV ac, 500 V dc |
Power Rating | 300W |
Output Current | 25A |
Mounting Type | PCB Mount |
Number of Outputs | 1 |
Efficiency | 0.945 |
Package | DIP |
Minimum Temperature | -40°C |
Load Regulation | 24mV |
Maximum Temperature | +85°C |
Length | 58.9mm |
Standards Met | CE, CUL (CSA 60950-1), CULus Recognised, EN 60950-1, UL 60950-1 |
Depth | 12.7mm |
Width | 23.26mm |
Series | CHS |
