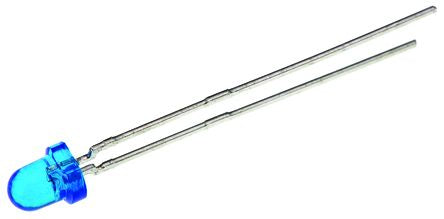

L-7104F3BT Kingbright, 940Nm IR LED, 3mm (T-1) Through Hole package [L-7104F3BT]; 165-1584
by Kingbright
0₫
Mã kho: 1651584
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 940nm |
| Package Type | 3mm (T-1) |
| Radiant Intensity | 10 mW/sr @ 20 mA, 32 mW/sr @ 50 mA |
| Mounting Type | Through Hole |
| Angle of Half Intensity | 34° |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Dimensions | 2.9 (Dia.) x 4.6mm |
| Lens Shape | Round |
| LED Material | GaAs |
