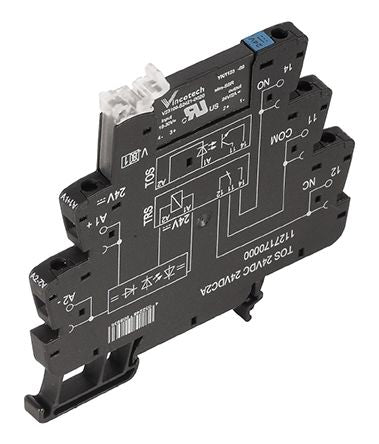

Weidmuller TOS Series 24V DIN Rail Interface Relay Module, SPDT, Screw [1127410000]; 892-8836
by Weidmuller
0₫
Mã kho: 8928836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 90mm |
| Depth | 6.4mm |
| Series | TOS |
| Height | 88mm |
| Dimensions | 90 x 6.4 x 88mm |
| Input Current | 10mA |
| Maximum Operating Temperature | 60°C |
| Operating Temperature Range | -20 → +60°C |
| Turn Off Time | <12ms |
| Turn On Time | <12ms |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Relay Switching Classification | General Purpose Relay |
