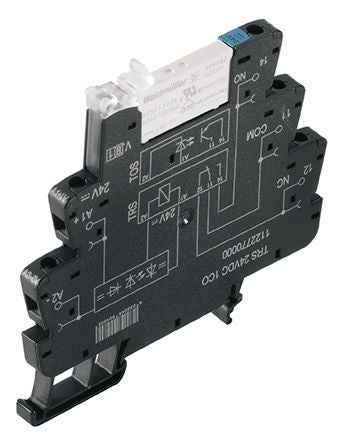

Weidmuller TRS Series 24 → 230V ac/dc DIN Rail Interface Relay Module, SPDT, Screw [1122850000]; 892-8805
by Weidmuller
0₫
Mã kho: 8928805
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 24 → 230V ac/dc |
| Maximum Input Voltage | 230V ac/dc |
| Switching Current | 0.25 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 90mm |
| Series | TRS |
| Depth | 6.4mm |
| Height | 88mm |
| Dimensions | 90 x 6.4 x 88mm |
| Contact Material | Silver Alloy |
| Input Current | 4 mA @ 230 V ac, 22 mA @ 24 V dc |
| Turn Off Time | <100ms |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
| Turn On Time | <22ms |
| Number of Poles | 1 |
| Operating Temperature Range | -40 → +60°C |
| Relay Switching Classification | General Purpose Relay |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
