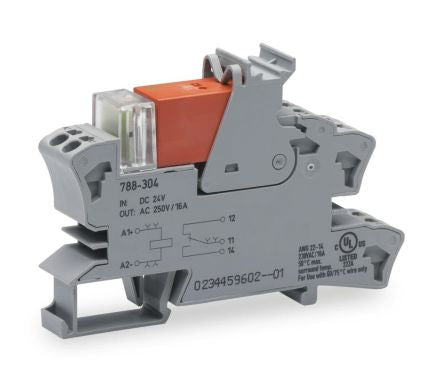

Wago 788 Series 24 V dc DIN Rail Relay Socket, SPDT, Cage Clamp, 16 A 24 (Maximum) V dc [788-304]; 180-3037
by Wago
0₫
Mã kho: 1803037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Switching Current | 19.1 mA |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac |
| Load Current Rating | 16A |
| Load Voltage Rating | 250V ac |
| Terminal Type | Cage Clamp |
| Length | 15mm |
| Series | 788 |
| Depth | 86mm |
| Height | 54mm |
| Dimensions | 15 x 54 x 86mm |
| Contact Material | Silver Alloy |
| Input Current | 19.1mA |
| Minimum Operating Temperature | -25°C |
| Life | 30 x 10^3 (Electrical) cycles, 30 x 10^6 (Mechanical) cycles |
| Input Voltage Range | 24 (Maximum)V dc |
| Maximum Operating Temperature | +50°C |
| Special Features | IP20 Degree of protection, LED Indication |
| Relay Switching Classification | Miniature Switching Relay |
| Operating Temperature Range | -25 → +50°C |
| Standards Met | EN 61010-2-201, EN 61373, EN 61810-1, UL, UL E175199 Sec.6 |
