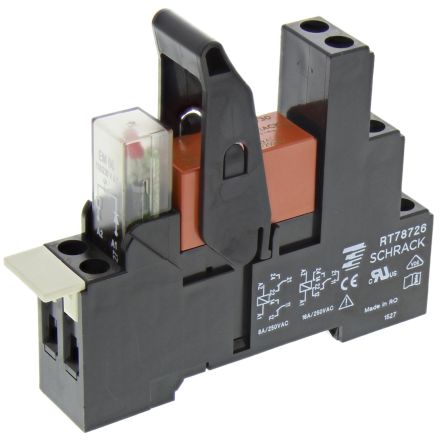

TE Connectivity RT Series 230V ac DIN Rail Interface Relay Module, DPDT, Screw [RT4S4T30 3-1415073-1]; 494-0621
0₫
Mã kho: 4940621
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 230V ac |
| Switching Current | 0.333333333333333 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 77mm |
| Series | RT |
| Depth | 15.8mm |
| Height | 69mm |
| Dimensions | 77 x 15.8 x 69mm |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -20 → +70°C |
| Number of Poles | 2 |
| Turn Off Time | 2ms |
| Minimum Operating Temperature | -20°C |
| Input Resistance | 32.5kΩ |
| Maximum Operating Temperature | +70°C |
