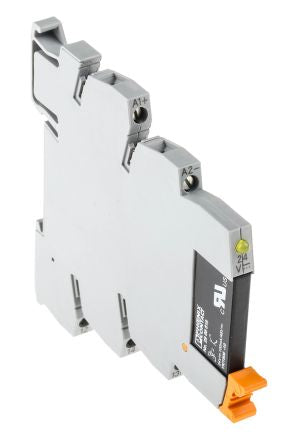

Phoenix Contact PLC-OSC- 24DC/ 48DC/100/C1D2 Series 24V dc DIN Rail PLC Interface, Screw [5603261]; 890-3897
0₫
Mã kho: 8903897
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Switching Current | 100 mA |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 80mm |
| Depth | 6.2mm |
| Series | PLC-OSC- 24DC/ 48DC/100/C1D2 |
| Height | 94mm |
| Dimensions | 80 x 6.2 x 94mm |
| Input Current | 8.5mA |
| Operating Temperature Range | -25 → +60°C |
| Turn Off Time | 300µs |
| Turn On Time | 20µs |
| Minimum Operating Temperature | -25°C |
| Relay Switching Classification | Miniature Solid State Relay |
| Standards Met | CUL Listed, CULus, UL Listed |
| Maximum Operating Temperature | +60°C |
