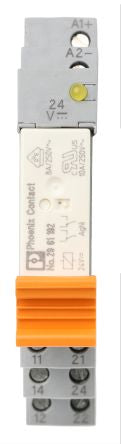

Phoenix Contact PLC-RSC- 24DC/21-21 Series 24V dc DIN Rail Interface Relay Module, DPDT, Screw [2967060]; 434-1327
0₫
Mã kho: 4341327
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Switching Current | 0.25 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 80mm |
| Depth | 14mm |
| Series | PLC-RSC- 24DC/21-21 |
| Height | 94mm |
| Dimensions | 80 x 14 x 94mm |
| Contact Material | Silver Alloy |
| Input Current | 18mA |
| Input Resistance | 1.3kΩ |
| Minimum Operating Temperature | -25°C |
| Number of Poles | 2 |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -25 → +60°C |
