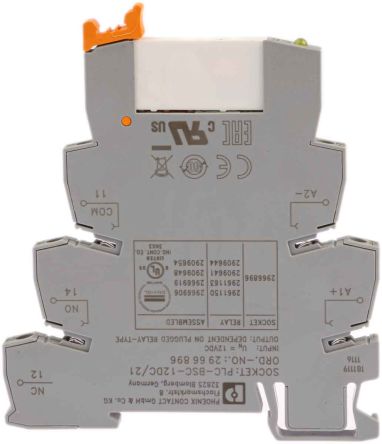

Phoenix Contact PLC-RSC Series 12V dc DIN Rail Interface Relay Module, SPDT, Screw [2966906]; 434-1311
0₫
Mã kho: 4341311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12V dc |
| Maximum Input Voltage | 12V dc |
| Switching Current | 0.25 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 80mm |
| Series | PLC-RSC- 12DC/21 |
| Depth | 6.2mm |
| Height | 94mm |
| Dimensions | 80 x 6.2 x 94mm |
| Contact Material | Silver Alloy |
| Input Current | 15.3mA |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +60°C |
| Number of Poles | 1 |
| Maximum Operating Temperature | +60°C |
| Input Resistance | 784Ω |
