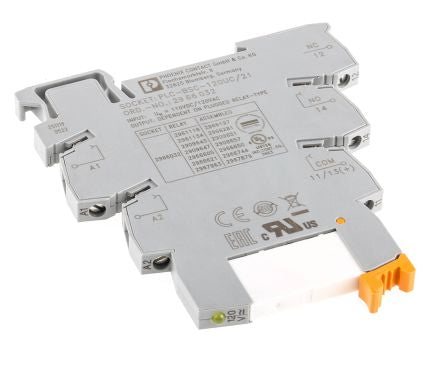

Phoenix Contact PLC-RSC-120UC/21 Series Chassis Mount Interface Relay Module, SPDT, Screw [2966197]; 801-8125
0₫
Mã kho: 8018125
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 120V ac |
| Maximum Input Voltage | 110 V dc, 120 V ac |
| Contact Configuration | SPDT |
| Switching Current | 0.0416666666666667 |
| Mounting Type | Chassis Mount |
| Terminal Type | Screw |
| Length | 6.2mm |
| Series | PLC-RSC-120UC/21 |
| Depth | 94mm |
| Height | 80mm |
| Dimensions | 6.2 x 94 x 80mm |
| Contact Material | Silver Alloy |
| Input Current | 3 mA @ 110 V dc, 3.5 mA @ 120 V ac |
| Operating Temperature Range | -40 → +55°C |
| Turn On Time | 6ms |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Turn Off Time | 15ms |
| Maximum Operating Temperature | +55°C |
