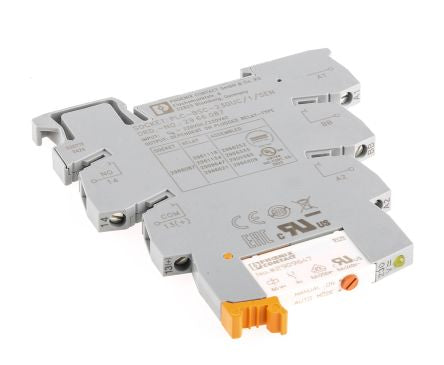

Phoenix Contact PLC-RSC-230UC/ 1AU/MS/SEN Series 230V ac/dc DIN Rail Interface Relay Module, SPNO, Screw [2909665]; 134-8717
0₫
Mã kho: 1348717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 230V ac/dc |
| Maximum Input Voltage | 220 V dc, 230 V ac |
| Contact Configuration | SPNO |
| Switching Current | 0.25 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 94mm |
| Series | PLC-RSC-230UC/ 1AU/MS/SEN |
| Depth | 6.2mm |
| Height | 80mm |
| Dimensions | 94 x 80 x 6.2mm |
| Contact Material | Gold Plated |
| Input Current | 15.3mA |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +60°C |
| Number of Poles | 1 |
| Maximum Operating Temperature | +60°C |
