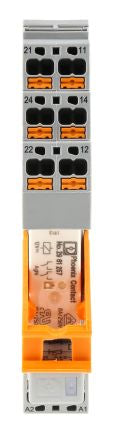

Phoenix Contact RIF-1-RPT-LDP-12DC/2X21 Series DIN Rail Relay Module, SPDT, Plug In, Screw [2906223]; 890-3900
0₫
Mã kho: 8903900
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12V dc |
| Maximum Input Voltage | 12V dc |
| Switching Current | 0.0416666666666667 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Plug In, Screw |
| Length | 75mm |
| Depth | 16mm |
| Series | RIF-1-RPT-LDP-12DC/2X21 |
| Height | 93mm |
| Dimensions | 75 x 16 x 93mm |
| Contact Material | Silver Alloy |
| Input Current | 33mA |
| Turn Off Time | 10ms |
| Turn On Time | 8ms |
| Operating Temperature Range | -40 → +70°C |
| Standards Met | DIN EN 50178, IEC 62103 |
| Relay Switching Classification | Interface Relay Module |
| Maximum Operating Temperature | +70°C |
| Number of Poles | 1 |
| Minimum Operating Temperature | -40°C |
