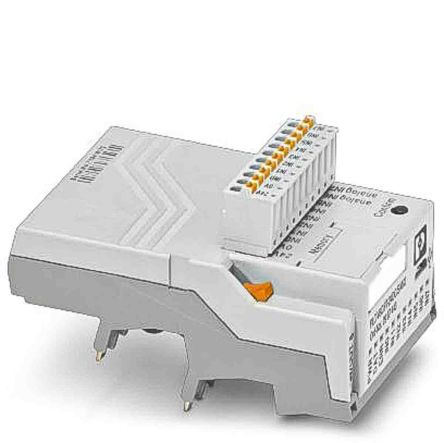

Phoenix Contact PLC-V8C/PT-24DC/EM Series Plug In Interface Relay Module, Socket, 4mA 19.2 → 26.4V dc [2905137]; 171-9690
0₫
Mã kho: 1719690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Input Voltage | 19.2V |
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 26.4V dc |
| Switching Current | 9 mA |
| Mounting Type | Plug In |
| Load Current Rating | 4mA |
| Terminal Type | Socket |
| Length | 50mm |
| Depth | 87mm |
| Series | PLC-V8C/PT-24DC/EM |
| Height | 111mm |
| Dimensions | 50 x 87 x 111mm |
| Input Current | 65mA |
| Input Voltage Range | 19.2 → 26.4V dc |
| Standards Met | CE, DIN EN 50178 |
| Operating Temperature Range | -20 → +45°C |
| Input Resistance | <100 (PLC-Interface) mΩ, >3.5 (Analogue) kΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +45°C |
| Special Features | Reverse Polarity Protection, Surge Protection |
