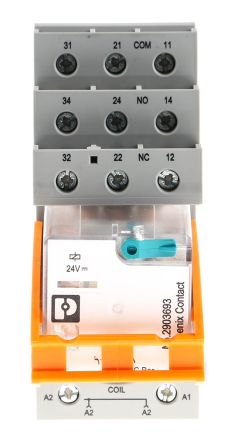

Phoenix Contact RIF 3 Series 24V dc DIN Rail Interface Relay Module, 3PDT, Screw [2903300]; 175-0531
0₫
Mã kho: 1750531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Contact Configuration | 3PDT |
| Switching Current | 10 mA |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Screw |
| Length | 40mm |
| Depth | 90mm |
| Series | RIF-3-RSC-LDP-24DC/3X21 |
| Height | 96mm |
| Dimensions | 40 x 90 x 96mm |
| Contact Material | Silver Alloy |
| Input Current | 60mA |
| Relay Switching Classification | Pre-Assembled Relay Module |
| Number of Poles | 3 |
| Minimum Operating Temperature | -40°C |
| Standards Met | DIN EN 50178, UL 94 |
| Special Features | IP20 Relay Base |
| Operating Temperature Range | -40 → +60°C |
| Life | 2 x 10^7 (Mechanical) cycles |
| Maximum Operating Temperature | +60°C |
