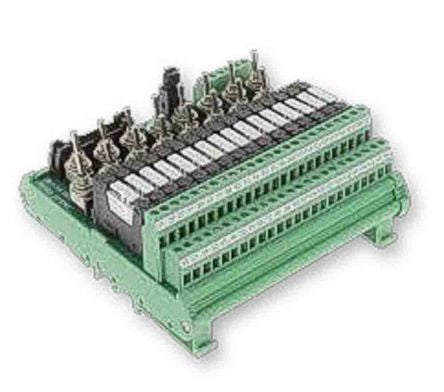

Phoenix Contact Interface Relay Module, Screw, 5A Maximum of 24V dc [2902269]; 184-0960
0₫
Mã kho: 1840960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Input Voltage | 24V dc |
| Switching Current | 25 mA |
| Load Current Rating | 5A |
| Load Voltage Rating | 25 V ac, 48 V dc |
| Terminal Type | Screw |
| Length | 129mm |
| Depth | 126mm |
| Height | 70mm |
| Dimensions | 129 x 126 x 70mm |
| Contact Material | Silver Alloy |
| Input Current | 25mA |
| Operating Temperature Range | -20 → +50°C |
| Minimum Operating Temperature | -20°C |
| Input Voltage Range | Maximum of 24V dc |
| Maximum Operating Temperature | +50°C |
| Special Features | Electromechanical Relay, Interface Module 16 Channels, Screw Connection, With Relay Per Channel |
| Relay Switching Classification | Electromechanical Relay, Miniature Relay |
