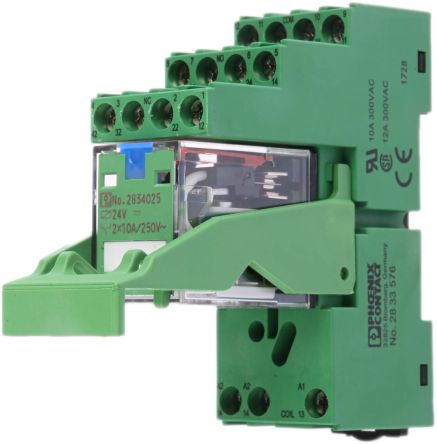

Phoenix Contact PR2 Series 24V dc DIN Rail Interface Relay Module, DPDT, Screw [2834643]; 524-3690
0₫
Mã kho: 5243690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.416666666666667 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 86mm |
| Series | PR2-RSC3-LDP-24DC/2X21 |
| Depth | 27mm |
| Height | 78.5mm |
| Dimensions | 86 x 27 x 78.5mm |
| Contact Material | Silver |
| Input Current | 38mA |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +60°C |
| Turn On Time | 13ms |
| Number of Poles | 2 |
| Turn Off Time | 5ms |
