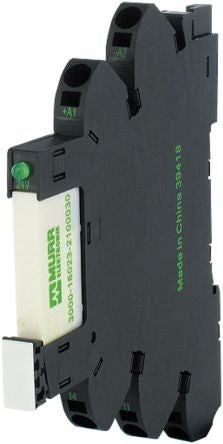

Murrelektronik Limited 24V dc DIN Rail Interface Relay Module, SPDT, Spring [3000-16013-3100020]; 137-0298
0₫
Mã kho: 1370298
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Switching Current | 0.25 |
| Mounting Type | DIN Rail |
| Terminal Type | Spring |
| Length | 6.2mm |
| Depth | 75.6mm |
| Height | 93mm |
| Dimensions | 6.2 x 75.6 x93mm |
| Contact Material | Silver Alloy |
| Input Current | 12mA |
| Standards Met | CE, CSA, CURus |
| Special Features | IP20 Touch Safe Terminals |
| Minimum Operating Temperature | -25°C |
| Turn Off Time | 4ms |
| Turn On Time | 8ms |
| Life | 10000 (NC) cycles, 30000 (NO) cycles, 10000000 (Mechanical) cycles |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -25 → +60°C |
| Relay Switching Classification | Interface Relay Module |
| Number of Poles | 1 |
