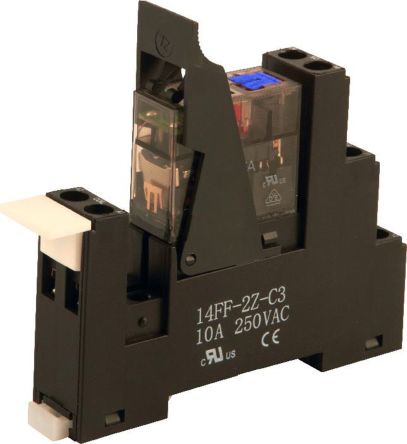

Hongfa Europe GMBH RMTFL Series 24V dc DIN Rail Interface Relay Module, SPDT, Screw [1RMTFL-24-3]; 137-2116
0₫
Mã kho: 1372116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Switching Current | 16 A |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 76mm |
| Depth | 15.8mm |
| Series | RMTFL |
| Height | 76mm |
| Dimensions | 76 x 15.8 x 76mm |
| Contact Material | Silver Alloy |
| Input Current | 16A |
| Turn Off Time | 8ms |
| Maximum Operating Temperature | +70°C |
| Number of Poles | 1 |
| Operating Temperature Range | -40 → +70°C |
| Control Resistance | 100mΩ |
| Turn On Time | 15ms |
| Special Features | AC & DC Coils, Built in Supply Status LED, Built in Test Button & Flag Indicator, Change Over Contacts, Clip and Identification Label, Fjector, Relay, Socket, Supplied Completed, 1 Part Number for Simple Ordering, 35mm DIN Rail Mounting |
| Standards Met | CE, CURus, DVE |
| Relay Switching Classification | Interface Relay Module |
| Minimum Operating Temperature | -40°C |
