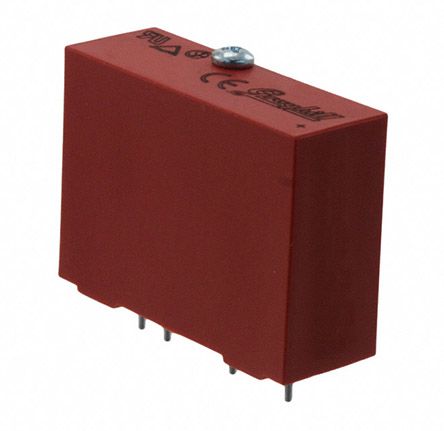

Grayhill 70-ODC Series 9V PCB Mount Interface Relay Module, SPNO, PCB Pin [70-ODC5A]; 877-8322
by Grayhill
0₫
Mã kho: 8778322
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 9V |
| Contact Configuration | SPNO |
| Switching Current | 3.5 A |
| Mounting Type | PCB Mount |
| Terminal Type | PCB Pin |
| Length | 43.2mm |
| Depth | 15.2mm |
| Series | 70-ODC |
| Height | 31.8mm |
| Dimensions | 43.2 x 15.2 x 31.8mm |
| Input Current | 18mA |
| Number of Poles | 1 |
| Standards Met | CE, CSA, TUV, UL Listed |
| Special Features | Built-In Status LED, Normally Open, Optical Isolation, Transient Protection |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +100°C |
| Turn On Time | 75µs |
| Input Resistance | 220Ω |
| Turn Off Time | 750µs |
| Maximum Operating Temperature | +100°C |
