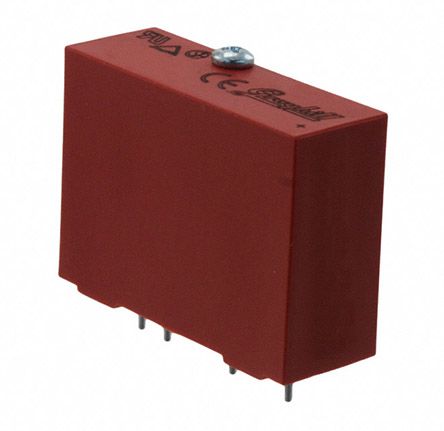

Grayhill 70-ODC Series 30V PCB Mount Interface Relay Module, SPNO, PCB Pin [70-ODC24]; 877-8366
by Grayhill
0₫
Mã kho: 8778366
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Coil Voltage | 30V |
Contact Configuration | SPNO |
Switching Current | 3.5 A |
Mounting Type | PCB Mount |
Terminal Type | PCB Pin |
Length | 43.2mm |
Depth | 15.2mm |
Series | 70-ODC |
Height | 31.8mm |
Dimensions | 43.2 x 15.2 x 31.8mm |
Input Current | 9mA |
Standards Met | CE, CSA, TUV, UL Listed |
Minimum Operating Temperature | -40°C |
Number of Poles | 1 |
Special Features | Built-In Status LED, Normally Open, Optical Isolation, Transient Protection |
Operating Temperature Range | -40 → +100°C |
Input Resistance | 2700Ω |
Turn On Time | 20µs |
Turn Off Time | 50µs |
Maximum Operating Temperature | +100°C |
