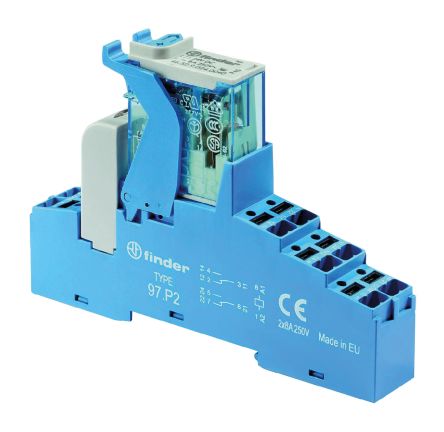

Finder 4C Series 12V ac DIN Rail Interface Relay Module, DPDT-2C/0, Push In [4C.P2.8.012.0060SPA]; 123-2830
by Finder
0₫
Mã kho: 1232830
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12V ac |
| Contact Configuration | DPDT-2C/0 |
| Switching Current | 0.333333333333333 |
| Mounting Type | DIN Rail |
| Terminal Type | Push In |
| Length | 15.8mm |
| Depth | 66.8mm |
| Series | 4C Series |
| Height | 95.5mm |
| Dimensions | 15.8 x 66.8 x 95.5mm |
| Contact Material | Silver Alloy |
| Input Current | 90mA |
| Turn Off Time | 3 (AC) ms, 10 (DC) ms |
| Maximum Operating Temperature | +70°C |
| Relay Switching Classification | General Purpose Relay |
| Operating Temperature Range | -40 → +70°C |
| Input Resistance | 80Ω |
| Standards Met | CE, CSA, CULus, EAC, GOST, IMQ, VDE |
| Turn On Time | 10 (AC) ms, 10 (DC) ms |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 2 |
| Special Features | AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard |
