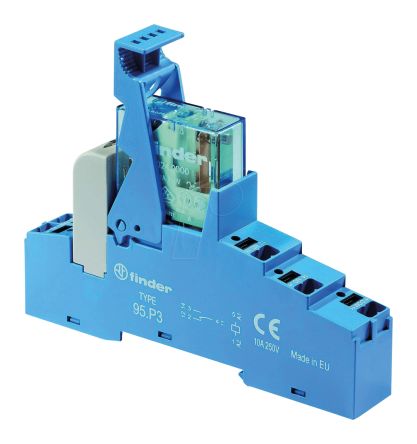

Finder 48 Series 110V ac DIN Rail Interface Relay Module, SPDT, Push In [48.P3.8.110.0060SPA]; 123-2807
by Finder
0₫
Mã kho: 1232807
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 110V ac |
| Switching Current | 0.416666666666667 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Push In |
| Length | 15.8mm |
| Series | 48 Series |
| Depth | 75.3mm |
| Height | 95.5mm |
| Dimensions | 15.8 x 75.3 x 95.5mm |
| Contact Material | Silver Alloy |
| Input Current | 10.1mA |
| Relay Switching Classification | General Purpose Relay |
| Number of Poles | 1 |
| Standards Met | CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE |
| Turn On Time | 7 (AC) ms, 12 (DC) ms |
| Minimum Operating Temperature | -40°C |
| Special Features | AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard |
| Turn Off Time | 4 (AC) ms, 12 (DC) ms |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -40 → +70°C |
