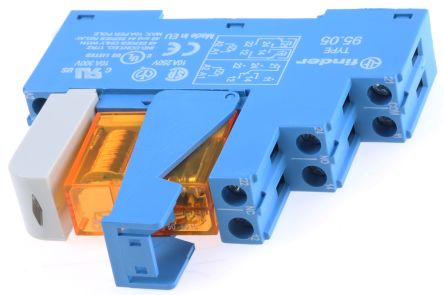

Finder 48 Series 24V ac DIN Rail Interface Relay Module, DPDT, Screw [48.52.8.024.0060SPA]; 623-7163
by Finder
0₫
Mã kho: 6237163
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V ac |
| Switching Current | 0.333333333333333 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 15.8mm |
| Series | 48 Series |
| Depth | 75.3mm |
| Height | 78.6mm |
| Dimensions | 15.8 x 75.3 x 78.6mm |
| Contact Material | Silver Alloy |
| Input Current | 46mA |
| Turn Off Time | 12ms |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Number of Poles | 2 |
| Operating Temperature Range | -40 → +70°C |
| Turn On Time | 15ms |
