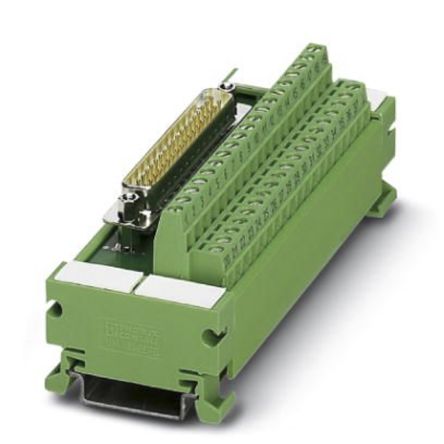

Phoenix Contact D-sub Interface Module, Male, 25 Pole, 25 V ac, 60 V dc, 2.5A, DIN Rail Mount [2962793]; 292-9600
0₫
Mã kho: 2929600
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Male |
| Wire Size | 26 → 16 AWG |
| Number of Contacts | 25 |
| Connector Type | D-sub |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 800V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 2.5A |
| Cable CSA | 0.14 → 1.5mm² |
| Dimensions | 90 x 42 x 45mm |
| Depth | 45mm |
| Length | 90mm |
| Maximum Operating Temperature | +50°C |
| Width | 42mm |
| Minimum Operating Temperature | -20°C |
