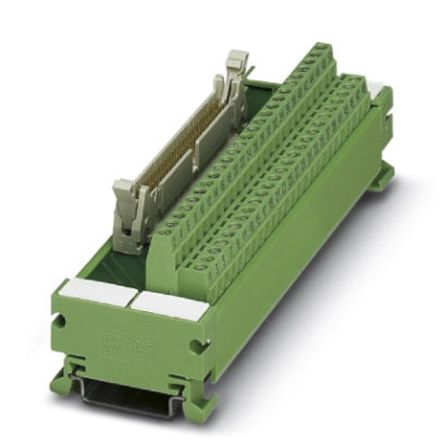

Phoenix Contact Flat Ribbon Cable Interface Module, Male, 40 Pole, 25 V ac, 60 V dc, 1A, DIN Rail Mount [2962609]; 607-7911
0₫
Mã kho: 6077911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Male |
| Wire Size | 26 → 16 AWG |
| Number of Contacts | 40 |
| Connector Type | Flat Ribbon Cable |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 500V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 1A |
| Cable CSA | 0.14 → 1.5mm² |
| Dimensions | 126 x 50 x 45mm |
| Depth | 45mm |
| Length | 126mm |
| Width | 50mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
