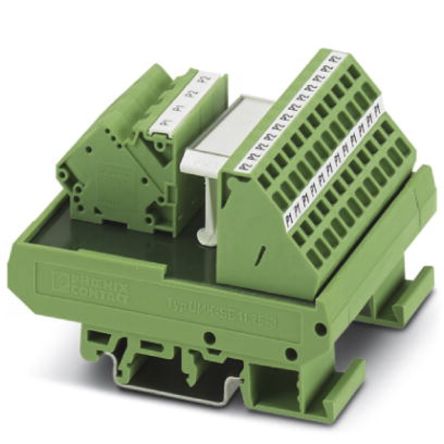

Phoenix Contact Interface Module, 14 Pole, 250 V ac/dc, 32A, DIN Rail Mount [2302366]; 648-4094
0₫
Mã kho: 6484094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Wire Size | 24 → 12 AWG |
| Number of Contacts | 14 |
| Mounting Type | DIN Rail Mount |
| Voltage Rating | 250 V ac/dc |
| Current Rating | 32A |
| Cable CSA | 0.2 → 4mm² |
| Dimensions | 67.5 x 52 x 77mm |
| Depth | 77mm |
| Length | 67.5mm |
| Width | 52mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
