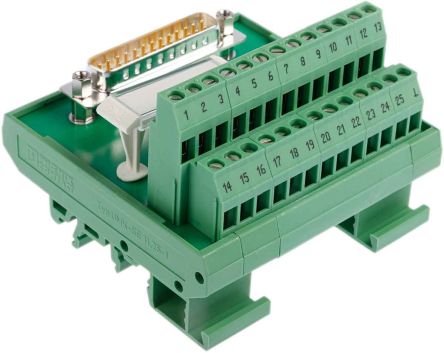

Phoenix Contact D-sub Interface Module, Male, 25 Pole, 25 V ac, 60 V dc, 2.5A, DIN Rail Mount [2281144]; 868-941
0₫
Mã kho: 868941
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Male |
| Wire Size | 24 → 12 AWG |
| Number of Contacts | 25 |
| Connector Type | D-sub |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 800V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 2.5A |
| Cable CSA | 0.2 → 4mm² |
| Dimensions | 78.8 x 58.5 x 77mm |
| Depth | 77mm |
| Length | 78.8mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Width | 58.5mm |
| Series | FLKM-D25 SUB/S |
