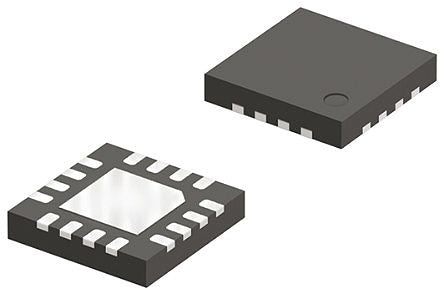

DGQ2788AEN-T1-GE4 Vishay, Analogue SPDT Switch Dual DPDT, Quad SPDT, 1.8 → 5.5 V, 16-Pin miniQFN [DGQ2788AEN-T1-GE4]; 164-8288
by Vishay
0₫
Mã kho: 1648288
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual DPDT, Quad SPDT |
| Package Type | MiniQFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Switch Type | Analogue Switch |
| Pin Count | 16 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 2 |
| Automotive Standard | AEC-Q100 |
| Height | 0.55mm |
| Propagation Delay Time | 0.1ns |
| Multiplexer Architecture | 0.0847222222222222 |
| Number of Inputs per Element | 2 |
| Length | 2.7mm |
| Dimensions | 2.7 x 1.9 x 0.55mm |
| Number of Outputs per Element | 2 |
| Width | 1.9mm |
| Maximum Power Dissipation | 525 mW |
