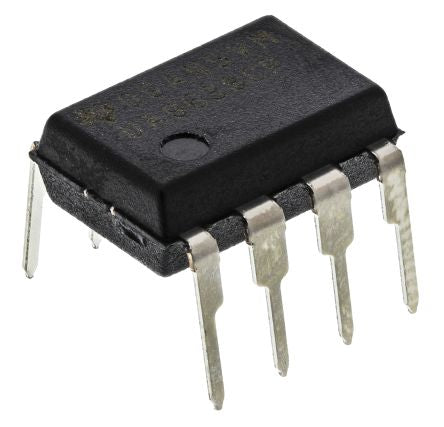

Texas Instruments UA9638CP, 2 (RS-422)-TX RS-422 Line Transmitter Differential 5 V, 8-Pin PDIP [UA9638CP]; 528-151
0₫
Mã kho: 528151
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 (RS-422) |
| Number of Drivers per Line | 10 (RS-422) |
| Data Rate | 15Mbps |
| Transmitter Signal Type | Differential |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 8 |
| Interface Standards | EIA/TIA-422-B, RS-422 |
| Dimensions | 9.81 x 6.35 x 4.57mm |
| Height | 4.57mm |
| Length | 9.81mm |
| Width | 6.35mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
