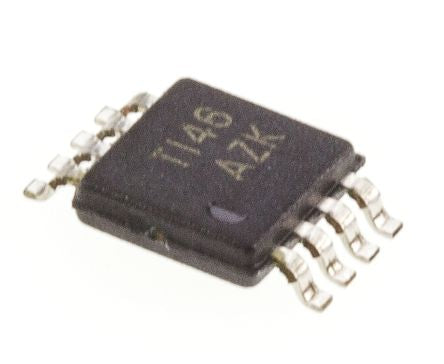

Texas Instruments SN65LVDS100DGK, LVDS Translator & Repeater CML, LVDS, PECL 2000MBps, 3 → 3.36 V, 8-Pin, MSOP [SN65LVDS100DGK]; 709-2747
0₫
Mã kho: 7092747
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Input Type | CML, LVDS, PECL |
| Output Type | Repeater, Translator |
| Transmission Data Rate | 2000Mbps |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 8 |
| Differential Input High Threshold Voltage | 0.1V |
| Differential Input Low Threshold Voltage | -0.1V |
| Dimensions | 3 x 3 x 0.97mm |
| Height | 0.97mm |
| Length | 3mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 3mm |
