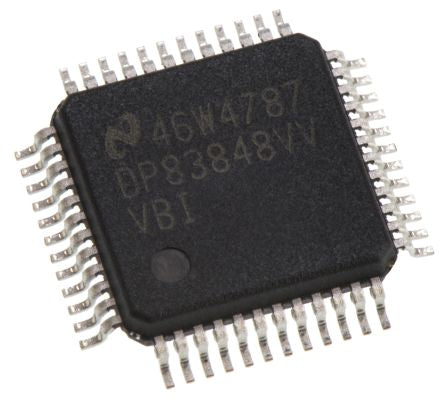

Texas Instruments DP83848IVV/NOPB 10/100BASE-TX Ethernet Transceiver, 3.3 V, JTAG, 48-Pin LQFP [DP83848IVV/NOPB]; 121-9009
0₫
Mã kho: 1219009
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Supported | 10BASE-T, 100BASE-TX |
| Number of Channels per Chip | 1 |
| Typical Data Rate | 10 Mbps, 100 Mbps |
| Power Supply Type | Single |
| Typical Operating Supply Voltage | 3.3 V |
| JTAG Support | Yes |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Pin Count | 48 |
| Dimensions | 7 x 7 x 1.4mm |
| Height | 1.4mm |
| Length | 7mm |
| Maximum Operating Temperature | +85 °C |
| Width | 7mm |
| Minimum Operating Temperature | -40 °C |
