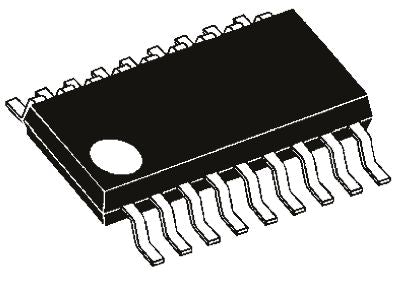

Maxim MAX563CWN+, Line Transceiver, EIA/TIA-562 2-TX 2-RX 2-TRX, 3 → 3.6 V, 18-Pin SOIC [MAX563CWN+]; 799-7787
0₫
Mã kho: 7997787
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 18 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 3 → 3.6 V |
| Data Rate | 116kbps |
| Number of Transceivers | 2 |
| Interface Standards | EIA/TIA-562 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Receivers per Line | 1 |
| Length | 11.75mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Single |
| Dimensions | 11.75 x 7.6 x 2.35mm |
| Height | 2.35mm |
| Width | 7.6mm |
