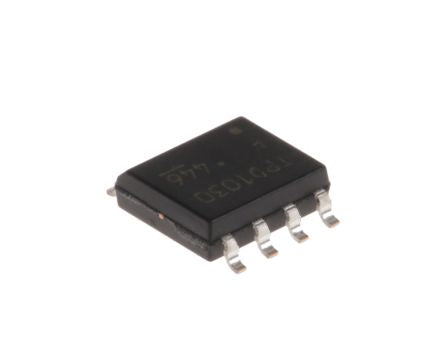

Toshiba TPD1030F(TE12L,Q), Dual Intelligent Power Switch, Low Side, 3 → 7V, 2W 8-Pin, SOP [TPD1030F(TE12L,Q)]; 760-3277
by Toshiba
0₫
Mã kho: 7603277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Low Side Switch |
| Switch On Resistance | 0.9Ω |
| Number of Outputs | 2 |
| Voltage | 3 → 7V |
| Power Rating | 2W |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Pin Count | 8 |
| Dimensions | 5.5 x 4.4 x 1.4mm |
| Length | 5.5mm |
| Width | 4.4mm |
| Height | 1.4mm |
| Maximum Operating Temperature | +110 °C |
| Minimum Operating Temperature | -40 °C |
