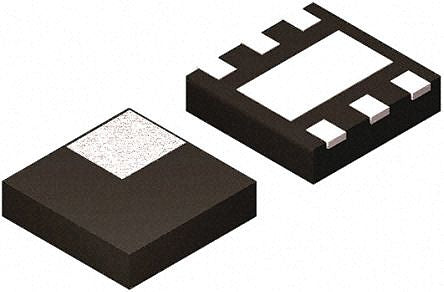

Texas Instruments TPS2552DRVT Load Switch IC, Power Distribution, 1.5A, 2.5 → 6.5V, 1.33W 6-Pin, SON [TPS2552DRVT]; 162-7919
0₫
Mã kho: 1627919
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Power Distribution Switch |
| Switch On Resistance | 150mΩ |
| Number of Outputs | 1 |
| Voltage | 2.5 → 6.5V |
| Current | 1.5A |
| Power Rating | 1.33W |
| Mounting Type | Surface Mount |
| Package Type | SON |
| Pin Count | 6 |
| Dimensions | 2.1 x 2.1 x 0.75mm |
| Length | 2.1mm |
| Width | 2.1mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
