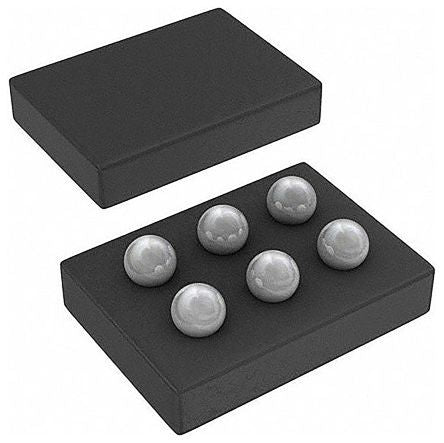

Texas Instruments TPS22925BNYPHT Load Switch IC, MOSFET Load Switch, 3A, 0.65 → 3.6V 6-Pin, DSBGA [TPS22925BNYPHT]; 133-0733
0₫
Mã kho: 1330733
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | MOSFET Load Switch |
| Switch On Resistance | 9.2 mΩ @ 3.6 V |
| Number of Outputs | 1 |
| Voltage | 0.65 → 3.6V |
| Current | 3A |
| Mounting Type | Surface Mount |
| Package Type | DSBGA |
| Pin Count | 6 |
| Dimensions | 1.39 x 0.89 x 0.22mm |
| Length | 1.39mm |
| Width | 0.89mm |
| Height | 0.22mm |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
