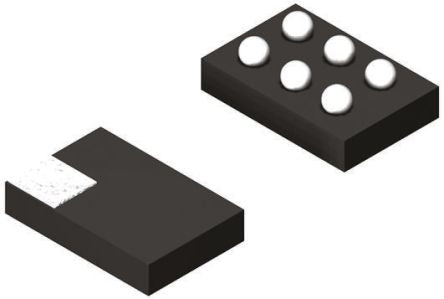

Texas Instruments TPS22924CYZPT Load Switch IC, Load Management, 2A, 0.75 → 3.6V 6-Pin, DSBGA [TPS22924CYZPT]; 162-7904
0₫
Mã kho: 1627904
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Load Management Switch |
| Switch On Resistance | 34.8mΩ |
| Number of Outputs | 1 |
| Voltage | 0.75 → 3.6V |
| Current | 2A |
| Power Rating | 810.63mW |
| Mounting Type | Surface Mount |
| Package Type | DSBGA |
| Pin Count | 6 |
| Dimensions | 1.418 x 0.918 x 0.31mm |
| Length | 1.42mm |
| Width | 0.918mm |
| Height | 0.31mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
