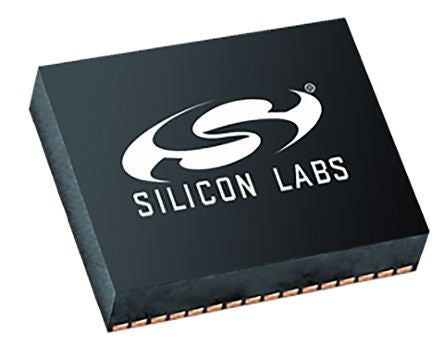

Silicon Labs, Si83408ADA-IF [Si83408ADA-IF]; 196-3987
by Silicon Labs
0₫
Mã kho: 1963987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Topology | High Side |
| Power Switch Type | Isolated Smart Switch |
| Number of Outputs | 8 |
| Voltage | 2.25 → 5.5 (Logic) V, 9 → 32 (Switch) V |
| Current | 12 (Quiescent)mA |
| Power Rating | 4 (Output)W |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 32 |
| Dimensions | 9 x 9 x 0.85mm |
| Length | 9mm |
| Width | 9mm |
| Height | 0.85mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Series | Si834 |
