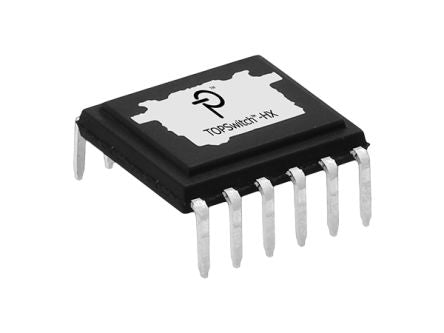

Power Integrations TOP258PN Topswitch, Off Line Switcher, 6.88A, 50W 8-Pin, DIPC [TOP258PN]; 146-5721
0₫
Mã kho: 1465721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Off Line Switcher |
| Switch On Resistance | 2.9Ω |
| Number of Outputs | 1 |
| Current | 6.88A |
| Power Rating | 50W |
| Mounting Type | Through Hole |
| Package Type | DIPC |
| Pin Count | 8 |
| Power Switch Features | Higher Design Flexibility, Low System Cost |
| Dimensions | 9.83 x 6.6 x 3.68mm |
| Length | 9.83mm |
| Protection Features | Over-Temperature |
| Width | 6.6mm |
| Height | 3.68mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Series | TOP258 |
