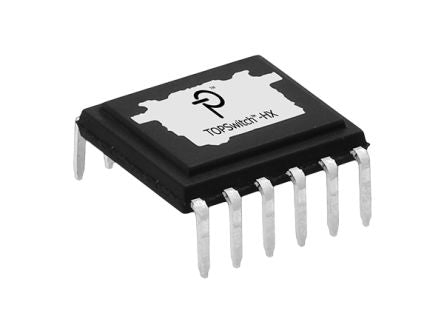

Power Integrations TOP258EN Topswitch, Off Line Switcher, 6.88A, 148W 7-Pin, eSIPC [TOP258EN]; 146-5720
0₫
Mã kho: 1465720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Off Line Switcher |
| Switch On Resistance | 2.9Ω |
| Number of Outputs | 1 |
| Current | 6.88A |
| Power Rating | 148W |
| Mounting Type | Surface Mount |
| Package Type | ESIPC |
| Pin Count | 7 |
| Power Switch Features | Higher Design Flexibility, Low System Cost |
| Dimensions | 10.24 x 8.25 x 2.06mm |
| Length | 10.24mm |
| Protection Features | Over-Temperature |
| Width | 8.25mm |
| Height | 2.06mm |
| Maximum Operating Temperature | +150 °C |
| Series | TOP258 |
| Minimum Operating Temperature | -40 °C |
