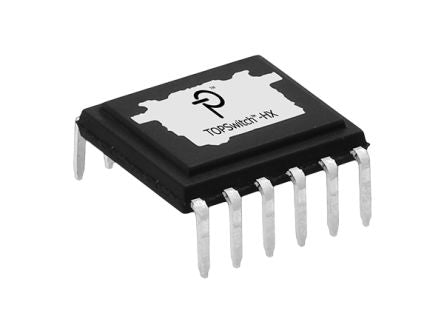

Power Integrations TOP257GN Topswitch, Off Line Switcher, 5.44A, 45W 8-Pin, SMDC [TOP257GN]; 146-5717
0₫
Mã kho: 1465717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Off Line Switcher |
| Switch On Resistance | 3.6Ω |
| Number of Outputs | 1 |
| Current | 5.44A |
| Power Rating | 45W |
| Mounting Type | Surface Mount |
| Package Type | SMDC |
| Pin Count | 8 |
| Power Switch Features | Higher Design Flexibility, Low System Cost |
| Dimensions | 9.83 x 6.6 x 3.68mm |
| Protection Features | Over-Temperature |
| Length | 9.83mm |
| Width | 6.6mm |
| Height | 3.68mm |
| Maximum Operating Temperature | +150 °C |
| Series | TOP257 |
| Minimum Operating Temperature | -40 °C |
